Stardust XR Server

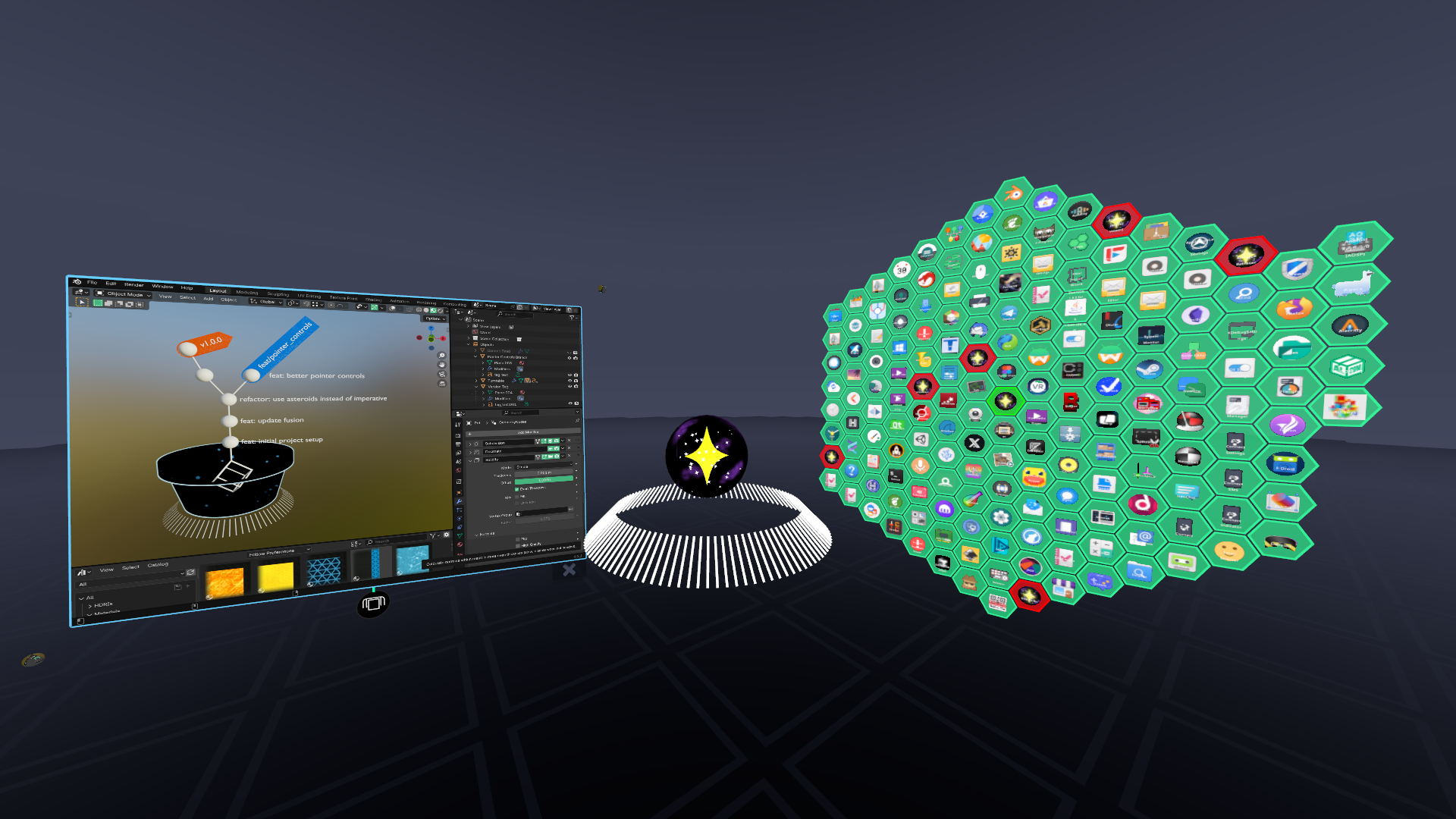

Stardust XR is a display server for VR and AR headsets on Linux-based systems. Stardust provides a 3D environment, where anything from 2D windows (including your existing apps!), to 3D apps built from objects, can exist together in physical space.

Core Dependencies

Functionality	Ubuntu (apt)	Fedora (dnf)	Arch Linux (pacman)
EGL / GL	libegl-dev, libgl-dev, libgbm-dev, libdrm-dev	mesa-libEGL-devel, mesa-libGL-devel, mesa-libgbm-devel, libdrm-devel	mesa (includes development files), libdrm
GLES 3.2	libgles2-mesa-dev	mesa-libGLES-devel	mesa (provides GLES libraries and headers)
X11	libx11-dev, libxcb1-dev, libxfixes-dev, libxau-dev	libX11-devel, libxcb-devel, libXfixes-devel, libXau-devel	libx11, libxcb, libxfixes, libxau
Font Rendering	libfontconfig1-dev, libfreetype6-dev	fontconfig-devel, freetype-devel	fontconfig, freetype2
Compression	zlib1g-dev, libbz2-dev, libbrotli-dev, liblzma-dev	zlib-devel, bzip2-devel, brotli-devel, xz-devel	zlib, bzip2, brotli, xz
Text Rendering	libharfbuzz-dev, libgraphite2-dev	harfbuzz-devel, graphite2-devel	harfbuzz, graphite
XML / Parsing	libxml2-dev, libexpat1-dev, libpcre2-dev	libxml2-devel, expat-devel, pcre2-devel	libxml2, expat, pcre2
Standard C++	libstdc++-dev-12	libstdc++-devel	gcc-libs (includes libstdc++)
XKB / Keyboard	libxkbcommon-dev, libxkbcommon-x11-dev	libxkbcommon-devel, libxkbcommon-x11-devel	libxkbcommon, libxkbcommon-x11
Core System	libglib2.0-dev	glib2-devel	glib2
PNG Support	libpng-dev	libpng-devel	libpng
Cargo (Rust)	cargo	cargo	cargo (part of the rust package)
CMake	cmake	cmake	cmake
dlopen (glibc)	libc6-dev	glibc-devel	glibc
OpenXR Loader	libopenxr-dev, libopenxr-loader1, libopenxr1-monado	openxr-devel	openxr

Command line installation of core & dynamic dependencies are provided below:

Ubuntu/Debian

  sudo apt update && sudo apt install \
  build-essential \
  cargo \
  cmake \
  libxkbcommon-dev libxkbcommon-x11-dev libstdc++-dev libx11-dev libxfixes-dev \
  libegl-dev libgbm-dev libfontconfig1-dev libxcb1-dev libgl-dev libdrm-dev \
  libexpat1-dev libfreetype6-dev libxml2-dev libxau-dev zlib1g-dev libbz2-dev \
  libpng-dev libharfbuzz-dev libbrotli-dev liblzma-dev libglib2.0-dev \
  libgraphite2-dev libpcre2-dev


Fedora

  sudo apt update && sudo apt install \
  cargo \
  cmake \
  libxkbcommon-dev libxkbcommon-x11-dev libstdc++-dev libx11-dev libxfixes-dev \
  libegl-dev libgbm-dev libfontconfig1-dev libxcb1-dev libgl-dev libdrm-dev \
  libexpat1-dev libfreetype6-dev libxml2-dev libxau-dev zlib1g-dev libbz2-dev \
  libpng-dev libharfbuzz-dev libbrotli-dev liblzma-dev libglib2.0-dev \
  libgraphite2-dev libpcre2-dev


Arch Linux

  sudo pacman -Syu --needed \
  cargo \
  cmake \
  libxkbcommon libxkbcommon-x11 libx11 libxfixes mesa fontconfig libxcb \
  libdrm expat freetype2 libxml2 libxau zlib bzip2 libpng harfbuzz brotli \
  xz glib2 graphite pcre2


Installation

More detailed instructions and walkthroughs are provided at https://www.stardustxr.org

The Terra Repository is required, and comes pre-installed with Ultramarine Linux. Other Fedora Editions and derivatives can directly install terra-release:

sudo dnf install --nogpgcheck --repofrompath 'terra,https://repos.fyralabs.com/terra$releasever' terra-release

For a full installation of the Stardust XR server and a selected group of clients, run:

sudo dnf group install stardust-xr

Manual Build

We've provided a manual installation script here that clones and builds the Stardust XR server along with a number of other clients from their respective repositories, and provides a startup script for automatically launching some clients.

After cloning the repository

cargo build

Usage

Note

For help with setting up an XR headset on linux, visit https://stardustxr.org/docs/get-started/setup-openxr

The Stardust XR Server is a server that runs clients, so without any running, you will see a black screen. If you only have the server installed, we recommend also cloning and building the following clients to start: Flatland, which allows normal 2D apps to run in Stardust, Protostar, which contains Hexagon Launcher, an app launcher menu, and Black Hole to quickly tuck away your objects and apps (kind of like desktop peek on Windows).

First, try running cargo run -- -f in a terminal window to check out flatscreen mode, (or stardust-xr-server -f / stardust-xr-server_dev -f if you installed via dnf or the manual installation script, respectively, as they provide symlinks.)

If there aren't already any clients running, you'll need to manually launch them by either navigating to their repositories and running cargo run, or running them via their names if you installed via dnf or the manual installation script, such as flatland, hexagon_launcher, etc.

Important

Flatland must be running for 2D apps to launch.

Startup Script

A startup script can be created at ~/.config/stardust/startup that will launch specified settings and clients/applications, an example of which is shown here. If you used the installation script, one will have already been made for you. This allows wide flexibility of what clients to launch upon startup (and, for example, where, using the Gravity client to specify X Y and Z co-ordinates).

Flatscreen Navigation

A video guide showcasing flatscreen controls is available here

To move around, hold down Shift + W A S D, with Q for moving down and E for moving up.

To look around, hold down Shift + Right Click while moving the mouse.

To drag applications out of the app launcher, hold down Shift + ~

XR Navigation

A video guide showcasing XR controls is available here

Quest 3 Hand tracking: Pinch to drag and drop, grasp with full hand for grabbing, point and click with pointer finger to click or pinch from a distance

Quest 3 Controller: Grab with the grip buttons, click by touching the tip of the cones or by using the trigger from a distance
